    48V Battery Electric Patrol Car

    Ask Lasest Price
    Brand Name : EXCAR
    Model Number : A1S2
    Certification : CE
    Price : Negotiate
    Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T
    Supply Ability : 300 units per month
    Delivery Time : 7 days after received your deposit
    • Product Details
    • Company Profile

    48V Battery Electric Patrol Car

    White 5 Seats Electric Patrol Car 3.7KW 48V Trojan Battery Electric Patrol Police car


    Details Description


    DIMENSION:3200*1500*2100MM

    F/R TRACK:1100/1150MM

    WHEELBASE:1990MM

    GROUND CLEARANCE:190MM

    MIN.TURNING RADIUS:4.1M

    NET WEIGHT:800KG

    PAY LOAD:560KG

    CLIMBLING CAPACITY:25%

    CHASSIS:HIGH STRENGTH

    BODY COVER:Whole Metal Body

    RANGE:60-80KM

    TYRE:185/70R13 TYRE


    * 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

    2) Range will vary depending on temperature, grade, payload and driving style.


    Body and Frame


    ItemDescription
    Frame & ChassisSteel alloy framework
    BodyPP engineering plastic front and rear body cover, injected
    RoofGlass fiber reinforced plastic
    WindshieldOrganic glass (PMMA),one-piece or two pieces
    Roof supportsImbedding black coating steel tube in the plastic support
    CushionReborn sponge with artificial leather and plastic bottom cover
    BackrestReborn sponge with artificial leather and plastic cover
    ArmrestPlastic
    Floor matAnti-skidding rubber
    Rear basketPlastic
    Golf bag holderPlastic support with nylon strap
    DashboardBlack plasticmaterial, battery power indicator, ignition key on it
    Beverage holders4 pcs cups holders, 2 pcs for each side
    Side trimPlastic, black
    Score card holderOn the steering wheel

    Electric System


    ItemDescription
    Lights

    48V, LED headlight (includes turning light and position light),

    LED taillights (includes brake lights and turning light),

    HornElectric horn, 48V
    Reverse buzzerElectric, 48V
    Combination switchControl the lights and horn
    Digital Meter (optional)Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

    Steering &suspersion


    ItemDescription
    Steering System

    Self-adjusting rack and pinion steering system,

    with automatic compensation function

    Brake SystemRear wheel mechanical brake
    AcceleratorHolzer type, stepless speed change
    Front suspensionMcphersonindependent spring suspension
    Rear suspensionCoil spring hydraulic shock absorber
    Driving modelRear axle two stage deceleration, motor direct driving
    Wheel &TyreAluminum wheel &USA Carlisle 18*8.5-8 6 layers

    Option Accessories


    To increase the sales value of our golf cart, we also provide many optional accessories.


    ItemOption descriptionItemOption description
    1E-key112-point seatbelt
    2Hinged windshield12Battery water refill system
    3Laminated windshield with wiper13Digital meter
    4Steel brush guard14EM brake
    5Front steel basket15Four wheel disc brake
    6Inner rear view mirror16Carlisle 205/50-10tyre with10inch wheel
    7Side rear view mirror17Ice box
    8Enclosure18Sand bottle
    9Sunshine cover19Sand rake
    10Golf bag cover20Ball washer

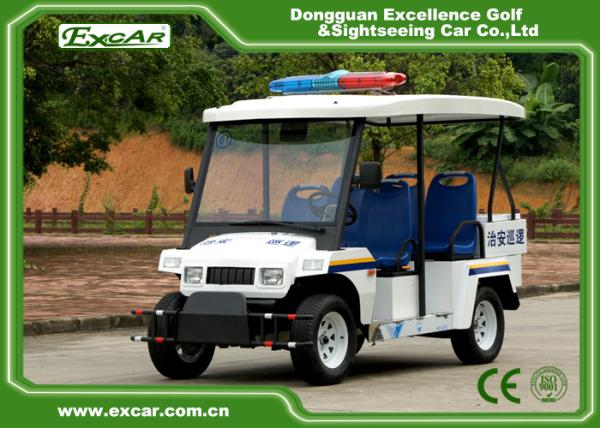

    Product Image



    Service


    1.For all your inquires about us or our products, we will reply you in detail within 24 hours.


    2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.


    3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.


    4.We design the full waterproof accelerator,Global special LED system,and only our Excar use 16:1 Italy Graziano axle,so the quality can be gurantee
