    Electric Golf Carts With Trojan Battery

    Ask Lasest Price
    Brand Name : EXCAR
    Model Number : M1S2
    Certification : CE
    Price : Negotiate
    Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 7 days after received your deposit
    • Product Details
    • Company Profile

    Electric Golf Carts With Trojan Battery

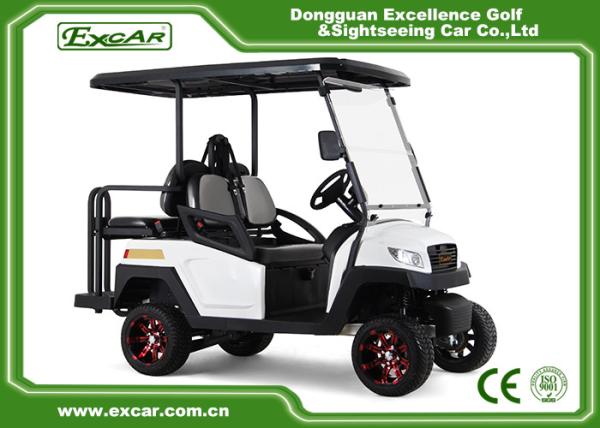

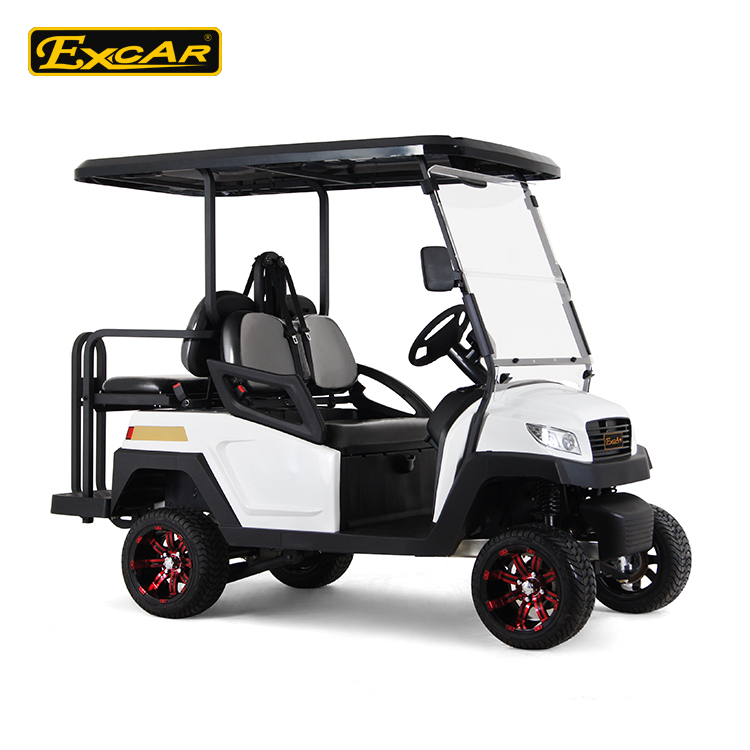

    CE approved 48V Trojan Battery Golf Cart 4 Seater White Colour Electric Golf Carts


    Basic specification


    ItemDescription
    Overall dimensions (L x W x H)3200x1200x2000mm
    Ground clearance150mm
    Wheelbase1670mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm

    Key Components


    SystemDC systemAC system
    ControllerCurtis controller 1266A-5201, 275A, imported from USA directlyCurtis controller 1234E-5221, 275A, imported from USA directly
    Motor

    ADC brand Separately excited

    DC motor 48V 3.7kw

    ADC brand Separately excited

    AC motor 48V 5kw

    BatteryTrojan battery, T875,8V*6pcs, imported from USA directlyTrojan battery, T875,8V*6pcs, imported from USA directly
    Transaxle

    Italian GRAZIANO axle

    with gear ration 1:12

    Italian GRAZIANO axle

    with gear ration 1:16

    Charger

    High Frequency onboard charger

    48V/17A regulator

    High Frequency onboard charger

    48V/17A regulator


    Performance


    systemDC systemAC system
    Passenger Capacity44
    Climbing capacity(full load)20%25%
    Max. forward speed23km/h45km/h
    Endurance mileage60-80km80-100km
    Charging time8-10 hours8-10 hours
    Max. loading weight300kgs300kgs
    Min. turning radius2.9m2.9m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    Electric System


    ItemDescription
    Lights

    48V, LED headlight (includes turning light and position light),

    LED taillights (includes brake lights and turning light),

    HornElectric horn, 48V
    Reverse buzzerElectric, 48V
    Combination switchControl the lights and horn
    Digital Meter (optional)

    Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
