Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h

Dongguan Excar Electric Vehicle Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h from wholesalers

    Buy cheap Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h from wholesalers
    • Buy cheap Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h from wholesalers
    • Buy cheap Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h from wholesalers
    • Buy cheap Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h from wholesalers
    • Buy cheap Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h from wholesalers

    Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h

    Ask Lasest Price
    Brand Name : EXCAR
    Model Number : D-G14
    Certification : CE
    Price : Negotiate
    Supply Ability : 300pcs per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

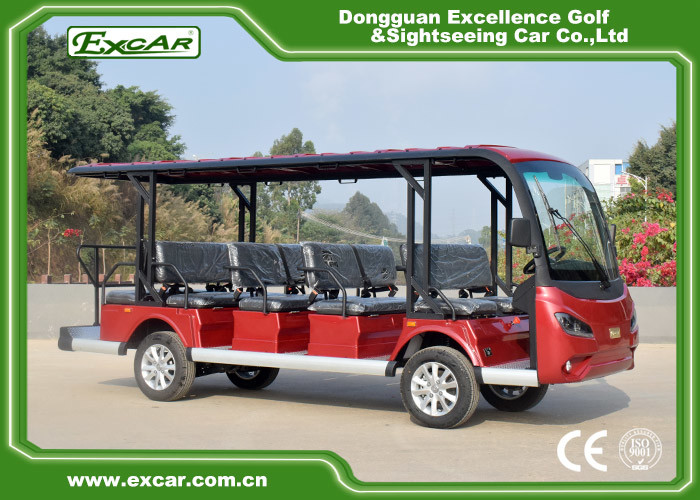

    Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h

    EXCAR 14 Seater electric sightseeing bus tour bus new elctric car 72V china mini bus


    Key Components


    ItemDescription
    SystemDC systemAC system
    ControllerCurtis controller 1266A-5301, 350A, imported from USA directlyCurtis controller 1234E-5321, 350A, imported from USA directly
    Motor

    ADC brand Separately excited

    DC motor 48V 3.7kw

    ADC brand Separately excited

    AC motor 48V 5kw

    BatteryTrojan battery, T875,6V*12pcs, imported from USA directlyTrojan battery, T875,6V*12pcs, imported from USA directly
    Transaxle

    Italian GRAZIANO axle

    with gear ration 1:12

    Italian GRAZIANO axle

    with gear ration 1:16

    Charger

    High Frequency onboard charger

    48V/17A regulator

    High Frequency onboard charger

    48V/17A regulator


    Performance


    ItemDescription
    systemDC systemAC system
    Passenger Capacity1414
    Climbing capacity(full load)20%25%
    Max. forward speed23km/h45km/h
    Endurance mileage50-70km60-80km
    Charging time8-10 hours8-10 hours
    Max.loading weight510kgs510kgs
    Min.turning radius5.1m5.1m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    * 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

    2) Range will vary depending on temperature, grade, payload and driving style.


    Dimensions


    ItemDescription
    Overall dimensions (L x W x H)5300x1500x2000mm
    Ground clearance150mm
    Wheelbase2850mm
    Front wheel tread (mm)1210mm
    Rear wheel tread (mm)1200mm

    Color options


    Body colourWhiteGreySky blue
    Dark blueRedWine red
    GreenDark greenYellow
    PurpleChampagneBlack
    These are the popular colours, but your customized color is available,just provide the right Panton No. color
    Seat & Roof colourBlackBeigeWhite

    Product Image


    Fashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/hFashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/hFashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/hFashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/hFashion 14 Person Electric Sightseeing Bus , Max forward speed 45km/h


    FAQ

    1.Can you customize the cart according to our special request?
    Yes,we can customize the cart according to your request unless some complex parts we hard to make.
    2.What is your MOQ?
    You can order just 1 unit .But if your order is big, we will provide you with a discount.
    3.Can we put the Logo we designed on the cart?
    Yes, you can put your own Logo on the cart.
    4.What is your lead time for production?
    The typical lead time of our cart is 15 days.
    5.What kind of warranty Excar provides?
    Non-artificial damaged products,shifting for a year or one year repair

    6.What's your payment term?

    T /T 30% deposit and balance paid before shipment


    Application


    Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.


    Contact: Pauline Liu
    Dongguan Excellence Golf&Sightseeing Car Co.,ltd
    Mobile: +86-13546943585

    www.excar.com.cn
