    EXCAR 3.7KM 48 Volt Electric Golf Car 2 Seater With Rain Cover Custom

    Ask Lasest Price
    Brand Name : Excar
    Model Number : A1S2
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 3000pcs per year
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    EXCAR 3.7KM 48 Volt Electric Golf Car 2 Seater With Rain Cover Custom

    EXCAR 3.7KM 48V 2 seater electric golf car with rain cover custom golf buggy

    Our golf cart has the same parts with Club car,but some parts we use better then theirs.The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
    Feather of golf cart as below:


    Performance


    ItemDescription
    systemDC systemAC system
    Passenger Capacity22
    Climbing capacity(full load)30%35%
    Max. forward speed23km/h45km/h
    Endurance mileage70-90km80-90km
    Charging time8-10 hours8-10 hours
    Max. loading weight360kgs360kgs
    Min. turning radius2.9m2.9m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    * 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

    2) Range will vary depending on temperature, grade, payload and driving style.


    Specification


    Configuration
    Battery6*8V 275AH Trojan T-875
    Power of Motor48V 3700W
    ControllerAmerican Curtis Electronics Controller
    AcceleratorAdjustable Inductive Accelerator Continuously Variable Speed System
    TransaxleItaly Graziano axle
    ChargerIntelligent Onbaord Charger
    Chassis configuration
    Front-SuspensionIndependent Spring Front Suspension
    Rear-SuspensionSpring Hydraulic Shock Absorbers
    SteeringDual Self Adjusting "Rack&Pinion" Steetring
    BrakesRear Wheel Mechanical Drum Brake and Regeneration Brake
    Performance
    Max Speed25 km/hChassisAluminum
    Max Travel Distance80-100kmWheelbase1670mm
    Slope Climbing Capacity30%Front Wheel Tread860mm
    Brake Range≤3mRear Wheel Tread970mm
    Max Noise<50dBTires205/50-10
    Carrying Capacity600KGDimension2700*1200*1900mm
    Turning Radius2900mmPassengers2 Person
    Net Weight430kgGround Clearance124mm

    Dimensions


    ItemDescription
    Overall dimensions (L x W x H)2641x1219x1727mm
    Ground clearance114mm
    Wheelbase1670mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm

    Body and Frame


    ItemDescription
    Frame & ChassisAluminum alloy beam, bended
    BodyPP engineering plastic front and rear body cover, injected
    RoofGlass fiber reinforced plastic
    WindshieldOrganic glass (PMMA), one-piece or two pieces
    Roof supportsImbedding black coating steel tube in the plastic support
    CushionReborn sponge with artificial leather and plastic bottom cover
    BackrestReborn sponge with artificial leather and plastic cover
    ArmrestPlastic
    Floor matAnti-skidding rubber
    Rear basketPlastic
    Golf bag holderPlastic support with nylon strap
    DashboardBlack plastic material, battery power indicator, ignition key on it
    Beverage holders4 pcs cups holders, 2 pcs for each side
    Side trimPlastic, black
    Score card holderOn the steering wheel

    Electric System


    ItemDescription
    Lights

    48V, LED headlight (includes turning light and position light),

    LED taillights (includes brake lights and turning light),

    HornElectric horn, 48V
    Reverse buzzerElectric, 48V
    Combination switchControl the lights and horn
    Digital Meter (optional)

    Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock



    Steering & suspersion


    ItemDescription
    Steering System

    Self-adjusting rack and pinion steering system,

    with automatic compensation function

    Brake SystemRear wheel mechanical brake
    AcceleratorHolzer type, stepless speed change
    Front suspensionMcpherson independent spring suspension
    Rear suspensionCoil spring hydraulic shock absorber
    Driving modelRear axle two stage deceleration, motor direct driving
    Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers


    Color Option

    ※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
    ※ Seat Color:Black or Beige
    ※ Roof Color:Black,White or Beige

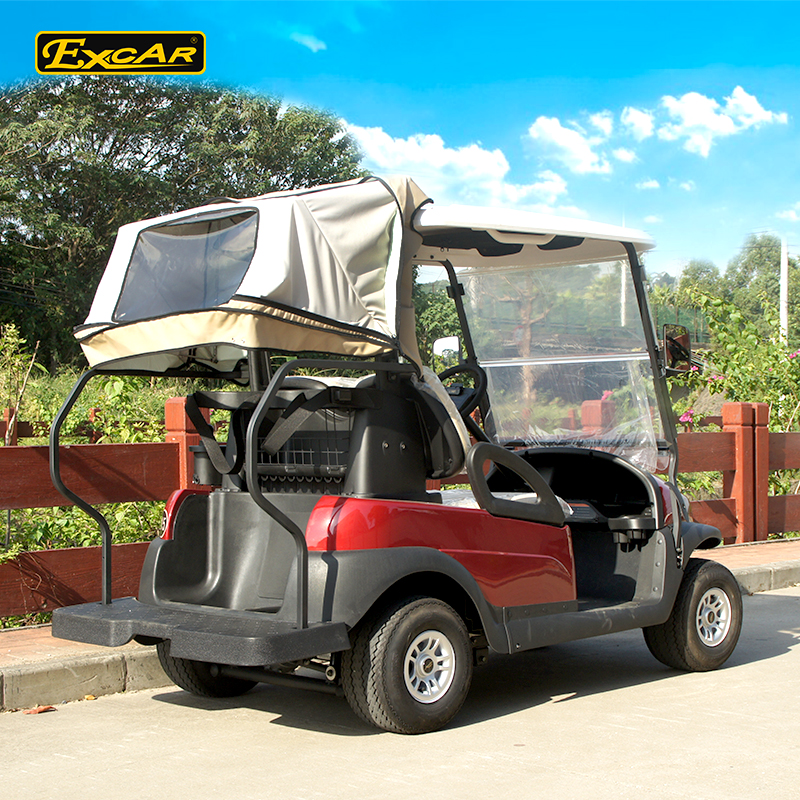

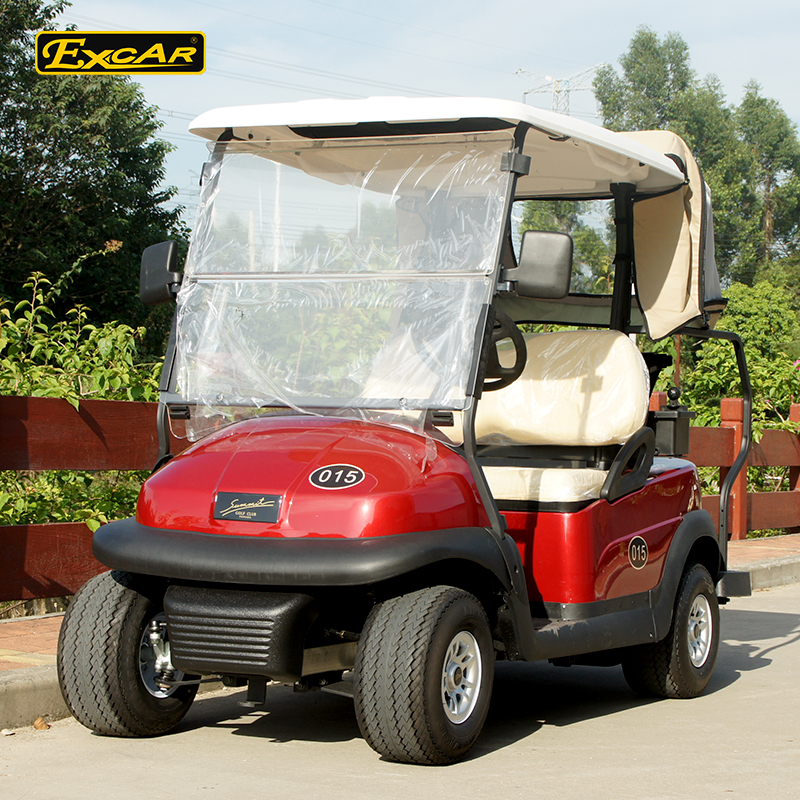

    Product Image


    FAQ


    1, what's your warranty time?
    Usually for 1 year

    2, What's the production time?
    Normally for 7-15 working days

    3, What's your payment term?
    T/T 30% deposit and balance paid before shipment

    4, Can we also purchase the parts
    Yes,if you do maintainess service,you can also buy parts from us

    5, How do you provide after-sales once customer bought the cart from us?
    Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

    6.What is your MOQ?
    You can order just 1 unit .

    7,Can we put the Logo we designed on the cart?
    Yes, you can put your own Logo on the cart.

    8,What's your payment term?
    T/T 30% deposit and balance paid before shipment

    9,How do you make our business long-term and good relationship?
    1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
    no matter where they come from.
