    48V 6 Seater Electrical Golf Car 350A Controller / Golf Buggy Car With Rain Cover

    Ask Lasest Price
    Brand Name : EXCAR
    Model Number : A1S4+2
    Certification : CE
    Price : Negotiate
    Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T
    Supply Ability : 200 units per month
    Delivery Time : 7 days after received your deposit
    • Product Details
    • Company Profile

    48V 6 Seater Electrical Golf Car 350A Controller / Golf Buggy Car With Rain Cover

    48V Trojan Battery Electrical Golf Carts 350A Controller Fuel Typee club car golf cart


    Basic specification


    Brand:Excar

    Model:A1S4+2

    Overall dimension((L x W x H)):3500*1200*1900mm

    Ground clearance:114mm

    Wheelbase:2490mm

    Front wheel tread(mm):860mm

    Rear wheel tread(mm):970mm


    specifications:


    1) Standard equipment
    2) Electrical system: 48V DC, 8V deep cycle storage batteries
    3) Speed control: solid state continuously variable separately excited speed controller
    - Curtis , chopper SEM-1C, electronic forward-neutral-reverse shifting
    4) Regenerative pedal down and or pedal up braking
    5) Non-contact inductive throttle sensor
    6) Enhanced hill climbing ability
    7) Full torque, reduce speed reverse
    8) Transaxle: high efficiency helical gears, ratio: 12:1
    9) Brakes: mechanical drum brake on each rear wheel with self-adjuster, non-asbestos
    braking plate, auto releasing the parking lock
    10) Suspension: independent and automatically suspension with self balance
    11) Steering: self-compensating single reduction rack and pinion
    12) Speed: 24km/h

    Features:


    1) Body and finish: industrial plastic ABS and PP with injection molded, molded-in
    color with automotive color coat finish
    2) Chassis: welded high yield strength tubular steel with liquid coat paint
    3) Safety: dash mounted key switch, reverse warming indicator, accelerator pedal,
    parking pedal, innovative hand holder/handgrip
    4) Dash panel: tee, ball, and 4-position drink holder, volt indicator, easy to touch
    and operate
    5) Performance options: selectable top speed and pedal up braking characteristics



    6) Weight (battery excluded): 630kg
    7) Max. speed: 20 - 24km/h
    8) Max. continuous mileage: 60 - 80km


    9) Slope climbing capability (full load): 20%
    10) Min. ground clearance: 114mm
    11) Min. turning radius: 3.9m


    12) Wheel base (front/rear): 860mm/970mm
    13) Voltage: 8V x 6
    14) Motor (power/voltage): 3.7kW/48V DC separately excited motors
    15) Brake system: mechanical drum brake on each rear wheel with self adjuster, non-asbestos
    braking plate, auto releasing the parking lock


    16) Tyre: 205/50-10tyre
    17) Charger: fully automatic high frequency intelligent charger
    18) Seat capacity: for 6 persons
    19) Maximum gradient: 30%
    20) Electrical control way: change speed by chopping wave
    21) Controller: 48V, 350A


    Packing & Shipping


    Excar golf cart will be packed in steel crate

    ModelDimension(mm)20” container40” container
    A1S4+2With roof & windshieldWithout roof & windshieldWith roof & windshieldWithout roof & windshieldWith roof & windshieldWithout roof & windshield
    3175*1219*18283175*1219*12502 units4units6units12units

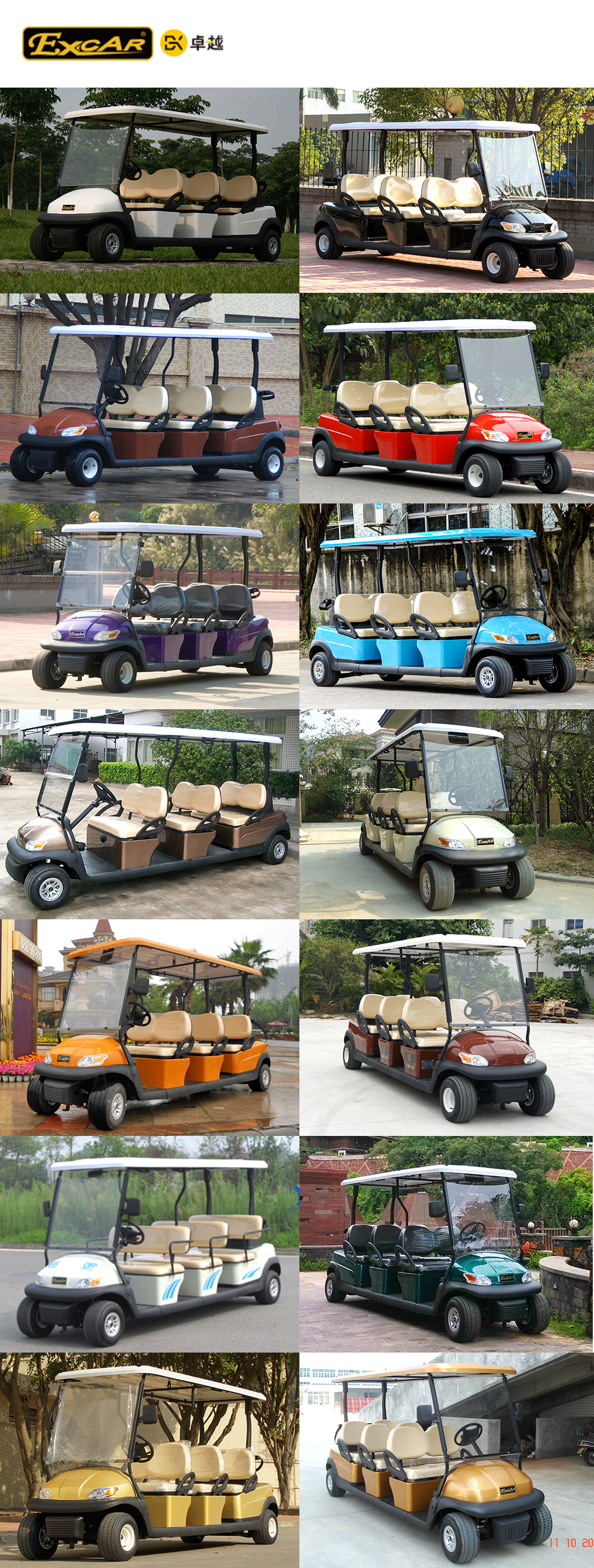

    Product Show
