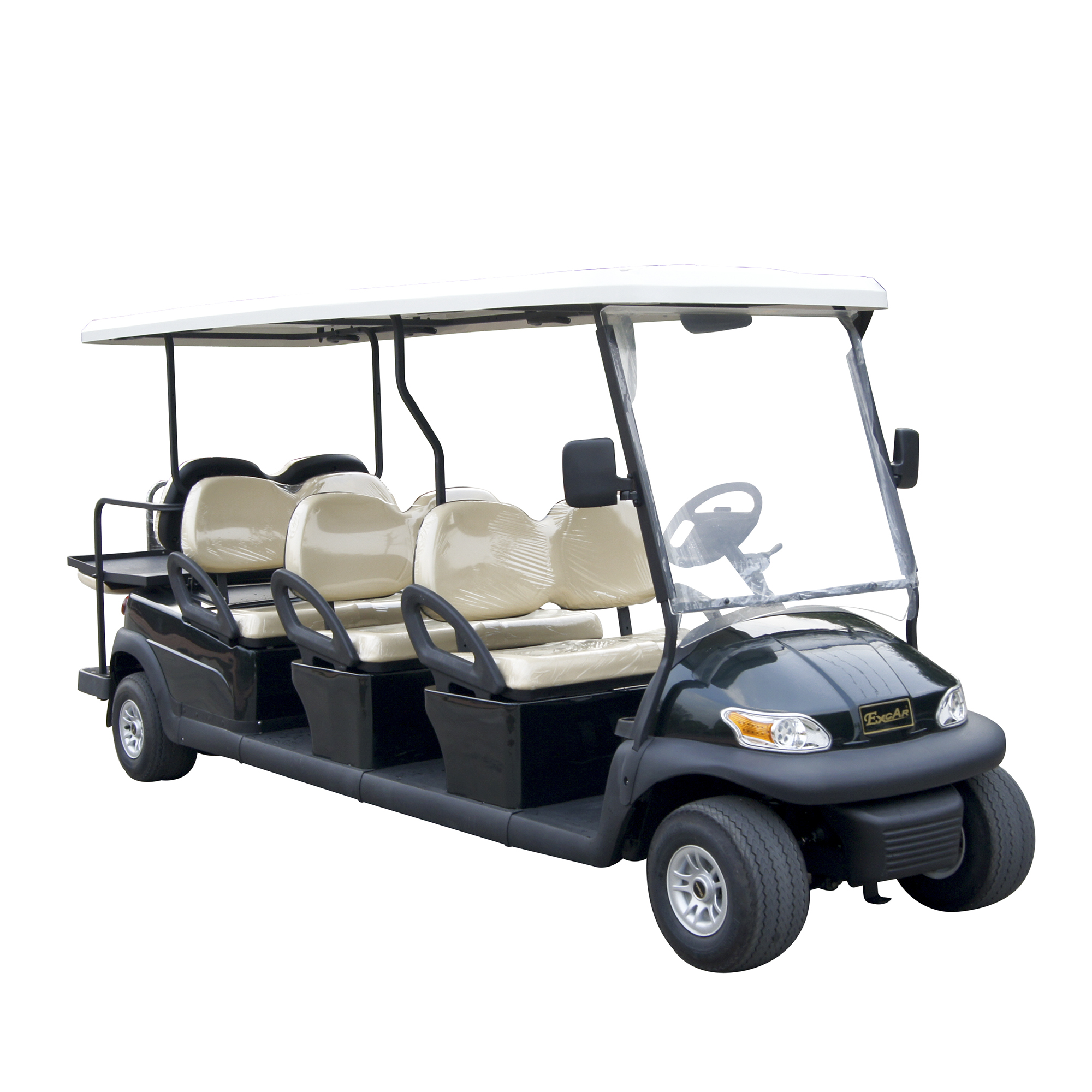

    48V 8 Seats Battery Powered Electric Golf Sightseeing Shuttle Bus With Curtise Controller

    Ask Lasest Price
    Brand Name : Excar
    Model Number : A1S6+2
    Certification : CE, ISO9001
    Price : USD 4595/ Units
    Payment Terms : L/C, T/T
    Supply Ability : 400units/ month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    48V 8 Seats Battery Powered Electric Golf Sightseeing Shuttle Bus With Curtise Controller

    Product Description :

    CONFIGURATION
    MOTOR:EXCAR 48V 3.7KW(AC)
    CONTROLLER:EXCAR 48V/350A AC CONTROLLER
    BATTERIES:48V
    CHARGER:48V 17A INTELLIGENT ONBOARD CHARGER
    CHASSIS CONFIGURATION
    TRANSAXLE:SPECIAL REAR AXLE FOR ELECTRIC VEHICLE
    BRAKE SYSTEM:REAR SELF-ADJUSTING DRUM BRAKE
    STEERING STSREM:DUAL SELF-ADJUSTING RACK & PINION
    F/R SUSPENSION:MCPHERSON INDEPENDENT SPRING


    Performance

    ItemDescription
    systemDC systemAC system
    Passenger Capacity88
    Climbing capacity(full load)20%25%
    Max. forward speed23km/h45km/h
    Endurance mileage50-70km60-80km
    Charging time8-10 hours8-10 hours
    Max. loading weight510kgs510kgs
    Min. turning radius5.1m5.1m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    * 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
    2) Range will vary depending on temperature, grade, payload and driving style.
    Dimensions

    ItemDescription
    Overall dimensions (L x W x H)4292x1219x1828mm
    Ground clearance114mm
    Wheelbase3300mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm

    Company Profile


    Exhibition


    Our Service
    1.For all your inquires about us or our products, we will reply you in detail
    within 24 hours.
    2. We offer OEM services. Can print your own logo on
    product ,can customize
    the electrical golf cart body colour and other things.
    3.We have sales who have engage in LED about 8years to help you custom
    -made the sales solution.
    4.We have engineers who has the experience in Toyota for car
    's engineering
    projects to help you solve all the problems of technical


    FQR
    Q:Are you factory or trading company?
    A:We are factory in Dongguan City, Guangdong Province,China.Near
    Shenzhen or Guangzhou.
    Q:What kind of certificate you have?
    A:ISO9001Certification,CE Certification, Will get the electric golf cart EEC
    Certification in 2017.Manufacture license of special equipment and
    ERP Program Management.
    Q:What is the lead time of the product?
    A: Generally 7-15 days after getting the deposit.
    Q:How about the payment term?
    A: T/T, by cash, western union, or L/C.
    Q:How about the warranty term?
    A:1 year warranty,offer FREE components under EXW shipped term.
