    2 Person Electric Golf Carts Club Electric Buggy With Golf Bag Bracket With CE Certification

    Ask Lasest Price
    Brand Name : Excar
    Model Number : A1S2
    Certification : CE
    Price : $4000-4300/per unit
    Payment Terms : L/C, T/T
    Supply Ability : 400 units/per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

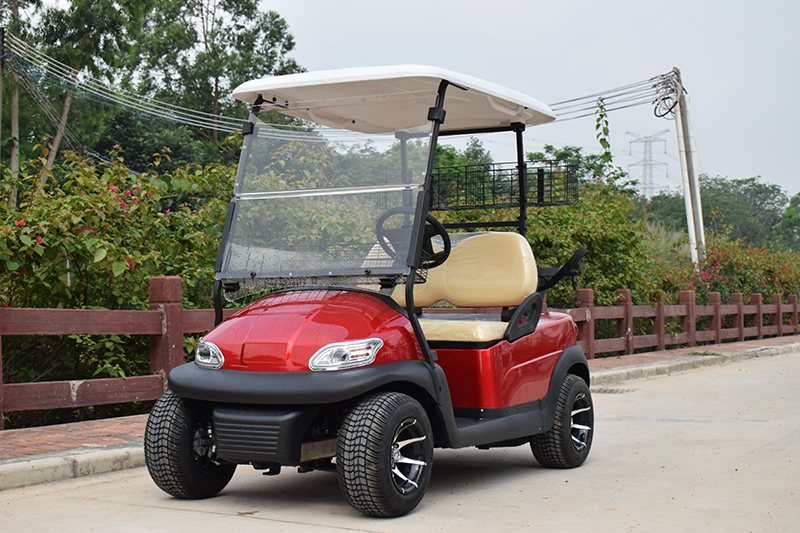

    2 Person Electric Golf Carts Club Electric Buggy With Golf Bag Bracket With CE Certification

    New design 2 person electric golf cart club electric buggy with golf bag bracket with CE certification


    Product Introduction:


    Key Components


    ItemDescription
    SystemDC systemAC system
    ControllerCurtis controller 1266A-5201, 275A, imported from USA directlyCurtis controller 1234E-5221, 275A, imported from USA directly
    Motor

    ADC brand Separately excited

    DC motor 48V 3.7kw

    ADC brand Separately excited

    AC motor 48V 3kw

    BatteryTrojan battery, T875,8V*6pcs, imported from USA directlyTrojan battery, T875,8V*6pcs, imported from USA directly
    Transaxle

    Italian GRAZIANO axle

    with gear ration 1:12

    Italian GRAZIANO axle

    with gear ration 1:16

    Charger

    High Frequency onboard charger

    48V/17A regulator

    High Frequency onboard charger

    48V/17A regulator


    Performance


    ItemDescription
    systemDC systemAC system
    Passenger Capacity22
    Climbing capacity(full load)30%35%
    Max. forward speed23km/h45km/h
    Endurance mileage70-90km80-90km
    Charging time8-10 hours8-10 hours
    Max. loading weight360kgs360kgs
    Min. turning radius2.9m2.9m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    * 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

    2) Range will vary depending on temperature, grade, payload and driving style.


    Dimensions


    ItemDescription
    Overall dimensions (L x W x H)2641x1219x1727mm
    Ground clearance114mm
    Wheelbase1670mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm

    Body and Frame


    ItemDescription
    Frame & ChassisAluminum alloy beam, bended
    BodyPP engineering plastic front and rear body cover, injected
    RoofGlass fiber reinforced plastic
    WindshieldOrganic glass (PMMA), one-piece or two pieces
    Roof supportsImbedding black coating steel tube in the plastic support
    CushionReborn sponge with artificial leather and plastic bottom cover
    BackrestReborn sponge with artificial leather and plastic cover
    ArmrestPlastic
    Floor matAnti-skidding rubber
    Rear basketPlastic
    Golf bag holderPlastic support with nylon strap
    DashboardBlack plastic material, battery power indicator, ignition key on it
    Beverage holders4 pcs cups holders, 2 pcs for each side
    Side trimPlastic, black
    Score card holderOn the steering wheel

    Electric System


    ItemDescription
    Lights

    48V, LED headlight (includes turning light and position light),

    LED taillights (includes brake lights and turning light),

    HornElectric horn, 48V
    Reverse buzzerElectric, 48V
    Combination switchControl the lights and horn
    Digital Meter (optional)

    Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock



    Steering & suspersion


    ItemDescription
    Steering System

    Self-adjusting rack and pinion steering system,

    with automatic compensation function

    Brake SystemRear wheel mechanical brake
    AcceleratorHolzer type, stepless speed change
    Front suspensionMcpherson independent spring suspension
    Rear suspensionCoil spring hydraulic shock absorber
    Driving modelRear axle two stage deceleration, motor direct driving
    Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers

    Option Accessories


    To increase the sales value of our golf cart, we also provide many optional accessories.

    ItemOption descriptionItemOption description
    1E-key112-point seatbelt
    2Hinged windshield12Battery water refill system
    3Laminated windshield with wiper13Digital meter
    4Steel brush guard14EM brake
    5Front steel basket15Four wheel disc brake
    6Inner rear view mirror16Carlisle 205/50-10 tyre with10inch wheel
    7Side rear view mirror17Ice box
    8Enclosure18Sand bottle
    9Sunshine cover19Sand rake
    10Golf bag cover20Ball washer

    Applications: Golf course / Center park / Real estate industry



    Packing & Shipping:


    a) LCL shipment Packing:

    roof move-off packing, steel frame , cartoon paper cover.

    b)FCL shipment Packing:

    packed by plastic foam & plastic film


    Container CapacityRemove roof,windshieldwith roof & windshield
    Qty/20'GP8units4units
    Qty/40'HQ18units10units

    FAQ:

    Q: Are you manufacturer?

    A: Yes, we are directly manufacturer.We have a strong R&D team to provide OEM & ODM service.

    Q: What kind of payment do you accept?

    A: Currently we accept T/T,L/C.For other ways of payment terms,please kindly consult us for details,we will judge accordingly.
