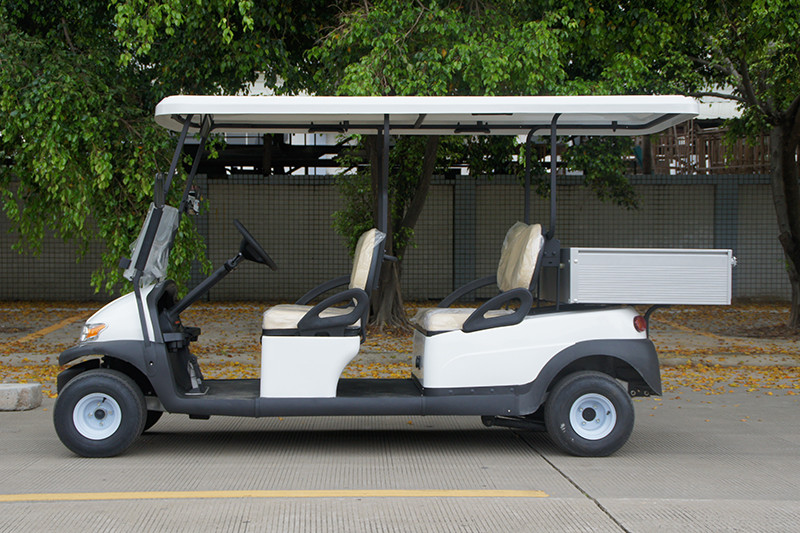

    4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

    Ask Lasest Price
    Brand Name : Excar
    Model Number : A1S4
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Negotiable
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

    Dimensions

    ItemDescription
    Overall dimensions (L x W x H)3175x1219x1727mm
    Ground clearance114mm
    Wheelbase2490mm
    Front wheel tread (mm)860mm
    Rear wheel tread (mm)970mm

    Performance


    ItemDescription
    systemDC systemAC system
    Passenger Capacity44
    Climbing capacity(full load)30%35%
    Max. forward speed23km/h45km/h
    Endurance mileage70-90km80-90km
    Charging time8-10 hours8-10 hours
    Max. loading weight360kgs360kgs
    Min. turning radius3.9m3.9m
    Max. movement after brake at speed of 20km/h≤4m≤4m

    * 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
    2) Range will vary depending on temperature, grade, payload and driving style.


    Electric System

    ItemDescription
    Lights48V, LED headlight (includes turning light and position light),
    LED taillights (includes brake lights and turning light),
    HornElectric horn, 48V
    Reverse buzzerElectric, 48V
    Combination switchControl the lights and horn
    Digital Meter (optional)Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

    Steering & suspersion

    ItemDescription
    Steering SystemSelf-adjusting rack and pinion steering system,
    with automatic compensation function
    Brake SystemRear wheel mechanical brake
    AcceleratorHolzer type, stepless speed change
    Front suspensionMcpherson independent spring suspension
    Rear suspensionCoil spring hydraulic shock absorber
    Driving modelRear axle two stage deceleration, motor direct driving
    Wheel & TyreAluminum wheel & USA Carlisle 18*8.5-8 6 layers

    Specification


    1. Type sofa chair, comfortable

    2. Efficient Italy graziano driving axle

    3. FR/disc RR/drum, safety golf cart’s higher driving ability

    4. Advanced Disc Brake Technology

    5. USA Imported Unique E-KEY

    6. 100% Waterproof accelerator

    7. Special Design Battery Tray

    8. Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series

    4 Seater Electric Golf Cart With Rear Small Cargo CE Approved4 Seater Electric Golf Cart With Rear Small Cargo CE Approved4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

    4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

    4 Seater Electric Golf Cart With Rear Small Cargo CE Approved

    48V lithium Battery Powered Electric Golf Car EXCAR A1S2+2 White 5

    48V lithium Battery Powered Electric Golf Car EXCAR A1S2+2 White 4
